物流读码器

所属分类：图像型条码阅读器
浏览次数：次
发布日期：2020-10-23 11:55:09

我要询价

产品概述
性能特点
技术参数

信息

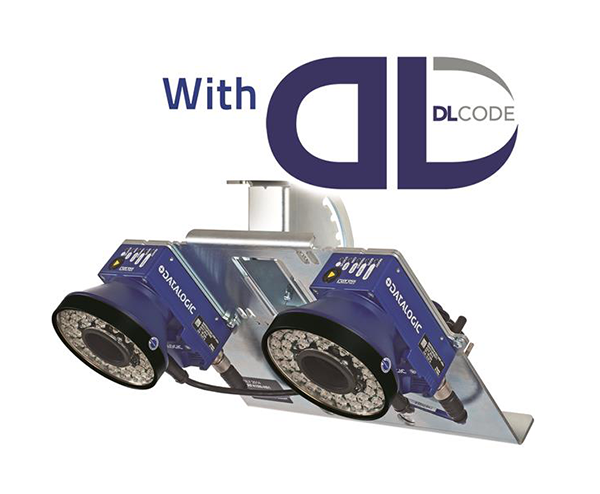

XRF410N™以其更大的阅读范围而命名，是一个基于最新Matrix 410N™平台的解决方案，物流扫码器用于物流行业的材料搬运和分拣。XRF410N™为各种物料的搬运应用而设计制造，中型物体运输速度可达2.2 m/s (433 fpm)，典型扫描深度400 mm (15.7 in.)。TheXRF410N™是电子商务小型物件订单自动执行系统或邮政物流分拣应用的解决方案。

特点/优势

· XRF410N™是一款功能齐全的Matrix解决方案，在工厂进行预组装和配置，简化了现场快速安装。

· XRF410N™运行最新的Datalogic得利捷解码引擎，完全能够成功扫描难以阅读、损坏或质量差的条码

· CBX500接线盒可选配显示器和存储器块，以便在出现故障时自动更换阅读器。zhuanli绿点提供良好的读取反馈，便于验证。

· 无需进行技术分析。只需条码尺寸、输送机宽度和速度，即可确定XRF410N™的正确版本...，它只是一个单一的部件号！

· 采用申请zhuanli中的PackTrack 2D技术，XRF410N非常适合内部短距离间隙的高速分拣（如交叉带、拼合盘）

· XRF410N™配备了最新的DL.CODE软件，通过实时图像显示、图形配置、嵌入式阅读统计和诊断功能，使用更加轻松愉快

应用

Thisproduct series has been developed to satisfy to requirements of the followingreference applications:

E-Commerce

XRF410Nis the perfect solution for ECommerce, with a reconfigured retail code EAN/UPC0.25 mm (10 mil) resolution, a small cell gap with 2D PackTrack software andcode reconstruction for polybags.

General material handling with reusable totes

XRF410Nis optimal for reusable totes identification over handling systems. Complexoperations including scanning the objects inside totes are simplified by theXRF410N’s large, real time Depthof Field (DOF).

End-of-line

XRF410Nis designed to fit medium speed material handling, such as end-of-linemanufacturing, with a price level equivalent to entry-level scanningtechnology.

Postal Sorting

XRF410Nis optimal for top reading of flyers, letters and small parcels typical in thepostal environment.

Medium object sortation for couriers

XRF410Nis a perfect fit for medium size conveyors in logistics productions.
For instance, a single XRF410N covers a 600 mm conveyor with, with a DOF of 400at 2.2 m/s.

产品序列提供以下型号:

产品订货号	产品描述
XRF Modules
937400028	XRF410N-B00 2HD_MED RES_MASTER
937400029	XRF410N-B10 2HD_HI RES_MASTER
937400030	XRF410N-H00 2HD_HI PERF_MED RES_MASTER
937400031	XRF410N-H10 2HD_HI PERF_HI RES_MASTER
937400032	XRF410N-H20 2HD_HI PERF_VHI RES_MASTER
937400033	XRF410N-B01 2HD_MED RES_EXTENSION
937400034	XRF410N-B11 2HD_HI RES_EXTENSION
937400035	XRF410N-H01 2HD_HI PERF_MED RES_EXTENS
937400036	XRF410N-H11 2HD_HI PERF_HI RES_EXTENS
937400037	XRF410N-H21 2HD_HI PERF_VHI RES_EXTENS
Pre-assembled spare parts
937400038	MATRIX 410N XRF-B0x SPARE UNIT-REPLMNT
937400039	MATRIX 410N XRF-B1x SPARE UNIT-REPLMNT
937400040	MATRIX 410N XRF-H0x SPARE UNIT-REPLMNT
937400041	MATRIX 410N XRF-H1x SPARE UNIT-REPLMNT
937400042	MATRIX 410N XRF-H2x SPARE UNIT-REPLMNT

以下附件可用于简化安装和优化产品性能:

产品订货号	产品描述
Folding mirror
93ACC0116	EMK-MTX-600 EXT.MIRROR XRF410N - 600MM
Main cables
93A051346	CAB-ETH-M01 M12-IP67 ETHERNET CABLE (1M)
93A051347	CAB-ETH-M03 M12-IP67 ETHERNET CABLE (3M)
93A051348	CAB-ETH-M05 M12-IP67 ETHERNET CABLE (5M)
93A050058	CAB-DS01-S M12-IP67 TO CBX 1M
93A050059	CAB-DS03-S M12-IP67 TO CBX 3M
93A050060	CAB-DS05-S M12-IP67 TO CBX 5M
93A050084	CAB-MLP-05 MULTI LIGHTING POWER 5M
CBX connection boxes and related accessories
93A301067	CBX100 CONNECTION BOX COMPACT
93A301068	CBX500 CONNECTION BOX MODULAR
93A301069	CBX100LT CONN. BOX COMPACT LOW TEMP.
93A301077	CBX800 GATEWAY
93A301076	CBX100 All in One
93A301070	CBX500 Profibus All-in-one; BM100+BM300
93A301071	CBX500 Ethernet All-in-one; BM100+BM520
93A301072	CBX500 Devicenet All-in-one; BM100+BM400
93ACC1821	BA100 DIN RAIL ADAPTERS
93ACC1822	BA200 BOSCH ADAPTERS
93ACC1877	BA300 M12 3P F. PANEL CONN. (SERVICE)
93ACC1853	BA400 M12 3P M. PANEL CONN. (EXT.POWER)
93ACC1854	BA500 M12 4P F. PANEL CONN. (TRIGGER)
93ACC1855	BA600 M12 5P F. PANEL CONN. (ID-NET OUT)
93ACC1856	BA700 M12 5P M. PANEL CONN. (ID-NET IN)
93ACC1847	BA900 TWO CABLE GLANDS PANEL
93ACC1827	ADP-FF1 GENDER CHANGER 25P F/F (5PCS)
93ACC1828	ADP-MM1 GENDER CHANGER 25P M/M (5PCS)
Optional modules for CBX500
93ACC1808	BM100 BACKUP MODULE
93ACC1809	BM150 DISPLAY MODULE
93ACC1851	BM200 ETHERNET TCP/IP MODULE
93ACC1852	BM210 ETHERNET TCP/IP IP65 MODULE
93ACC1810	BM300 PROFIBUS MODULE
93ACC1811	BM310 PROFIBUS IP65 MODULE
93ACC1814	BM400 DEVICENET IP65 MODULE
93ACC1812	BM500 ETHERNET MODULE
93ACC1813	BM510 ETHERNET IP65 MODULE
93ACC1840	BM520 ETHERNET IP54 MODULE
93ACC1815	BM600 CAN OPEN MODULE
93ACC1816	BM700 PROFINET MODULE
93ACC1845	BM1100 CC-LINK MODULE
93ACC1848	BM1200 MODBUS TCP MODULE
93ACC1849	BM1210 MODBUS TCP IP65 MODULE
93ACC0113	BM1300 ETHERCAT MODULE
Quick Link Connection Modules
93ACC1860	QL100 ID-NET T-CONNECTION
93ACC1868	QL150 ID-NET + SERVICE T-CONNECTION
93ACC1861	QL200 ID-NET + POWER T-CONNECTION
93ACC1862	QL300 STANDARD CONNECTION MODULE
93ACC1864	QL500 CONNECTION MODULE + ETHERNET
93ACC0033	QLM600 PROFIBUS IP65 CONN. MODULE
93ACC0037	QLM500 ETHERNET/IP IP65 CONN. MODULE
93ACC0038	QLM700 PROFINET IP65 CONN. MODULE
Clustering cables
93A051385	CAB-AUX03 M12 3P TO DB9 SERIAL CABLE 3M
93A051381	CAB-PW-EXT M12 POWER EXTENSION CABLE
93ACC1883	FMC300 M12 3P M. CONN. SERVICE
93ACC1884	FMC400 M12 3P F. CONN. POWER
93A051386	CAB-AUX04 15P DSUB TO DB9 SERIAL CABLE
93ACC0040	FMC600 M12 8P M. A-Code QLM-I/O
93A050048	CBL-1480-0.3 M12/5P MALE/FEM. 0.3M IDNET
93A050049	CBL-1480-01 M12/5P MALE/FEMALE 1M IDNET
93A050050	CBL-1480-02 M12/5P MALE/FEMALE 2M IDNET
93A050051	CBL-1480-05 M12/5P MALE/FEMALE 5M IDNET
93A050045	CBL-1487 CONNECTOR M12/5P/FEMALE IDNET
93A050046	CBL-1490 TERM. RESIST. M12/5P/MALE IDNET
93A050052	CBL-1494-02 M12/5P/FEMALE-LEADS 2M IDNET
93A050053	CBL-1494-05 M12/5P/FEMALE-LEADS 5M IDNET
93A050047	CBL-1496 TERM. RESIST. M12/5P/FEM. IDNET
93A050056	CBL-1498-02 M12/5P/MALE-LEADS 2M IDNET
Power supplies
93ACC0046	PG-120-K01 PWR SUPPLY KIT FOR M450 (EU)
93ACC0047	PG-120-K02 PWR SUPPLY KIT FOR M450 (UK)
93ACC0048	PG-120-K03 PWR SUPPLY KIT FOR M450 (US)
93A050043	CAB-PG-0105 VDC PWR PG120-M450 5M
93ACC1870	CAB-PG-0002 VDC PWR PG120-IDNET 2M
93ACC0076	PWR-480B POWER UNIT 110/230VAC 24V
Documentation kit
93ACC0148	SW-DOCS-TEST CHART FOR MATRIX DL.CODE
